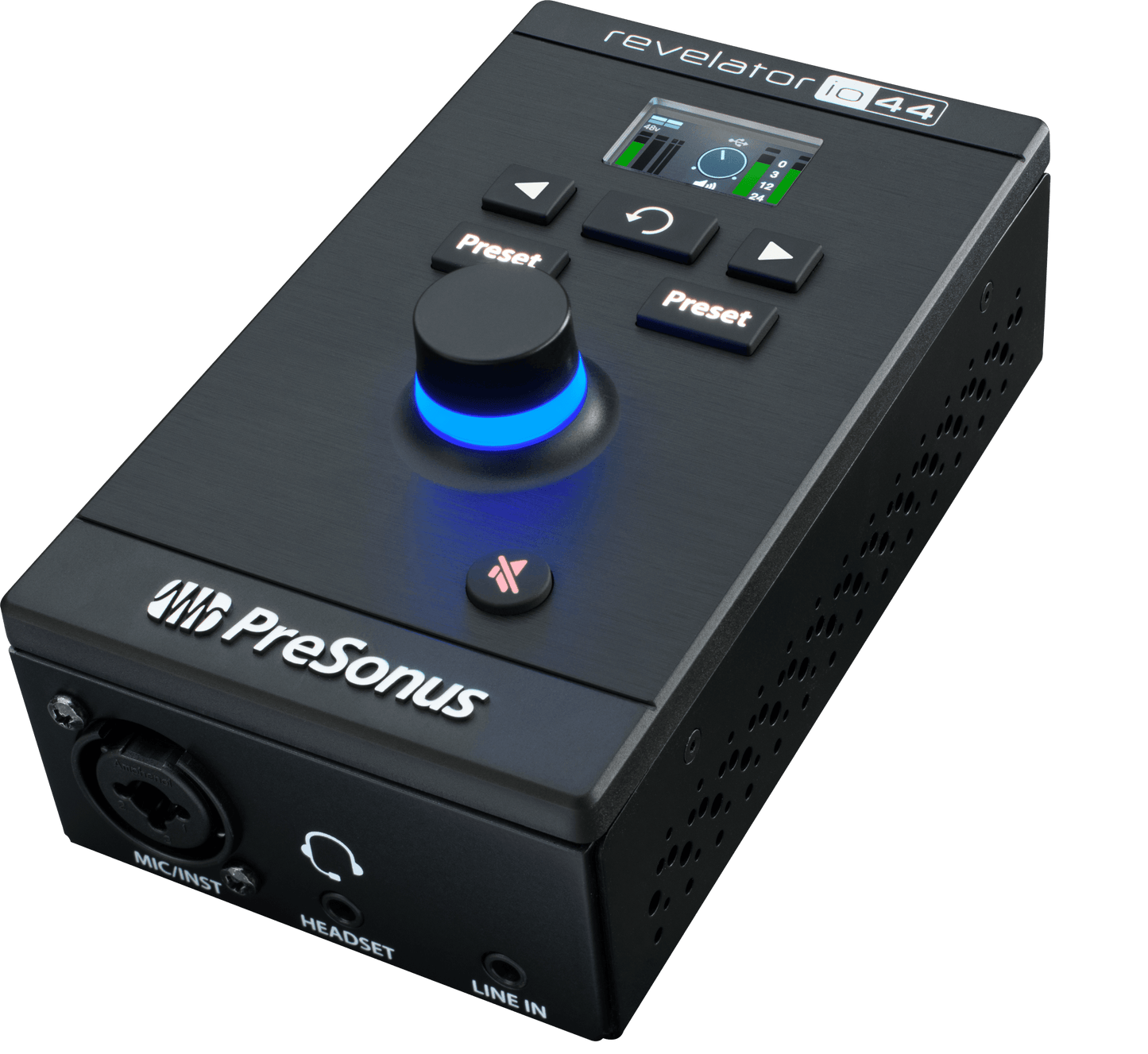

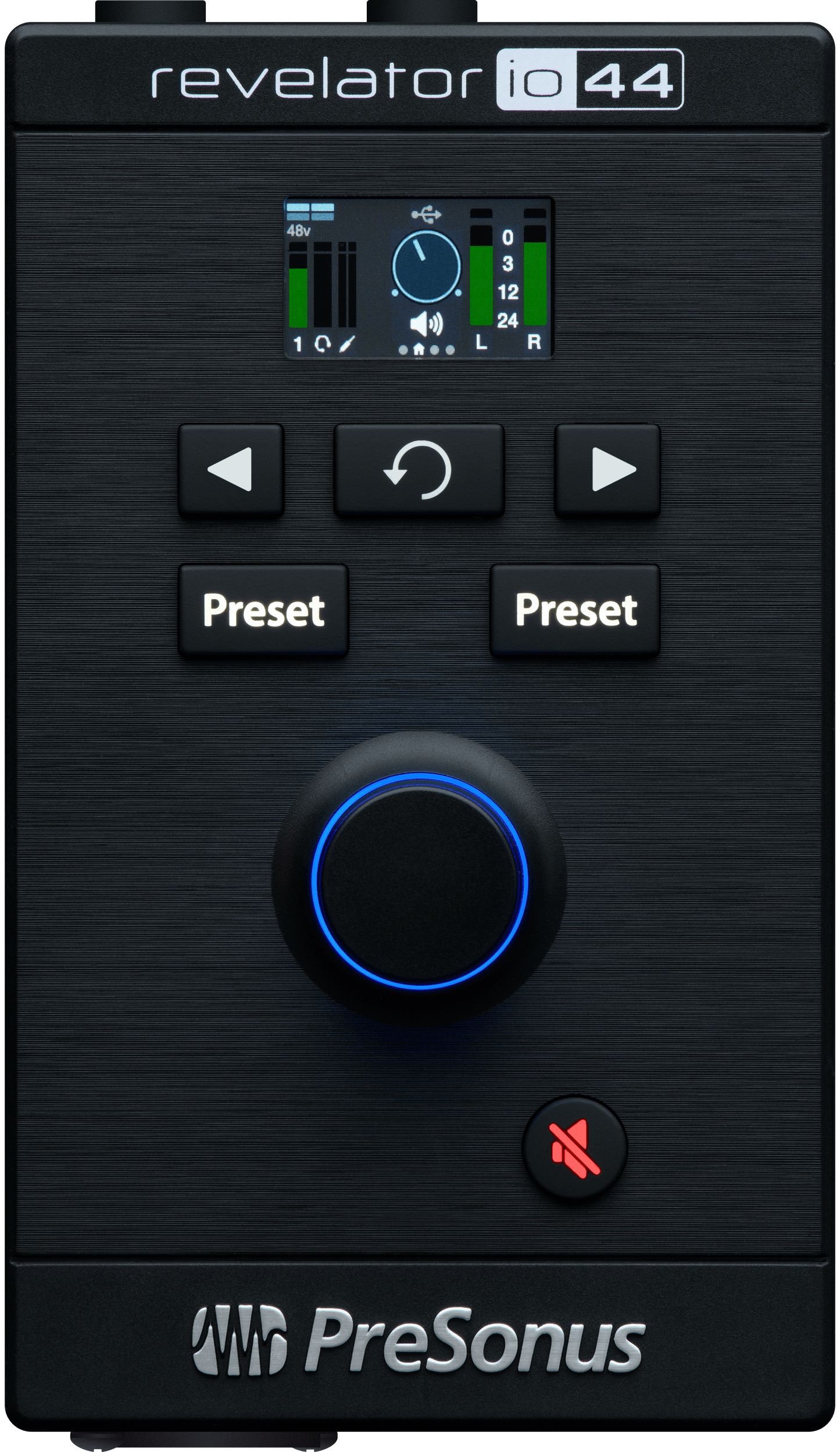

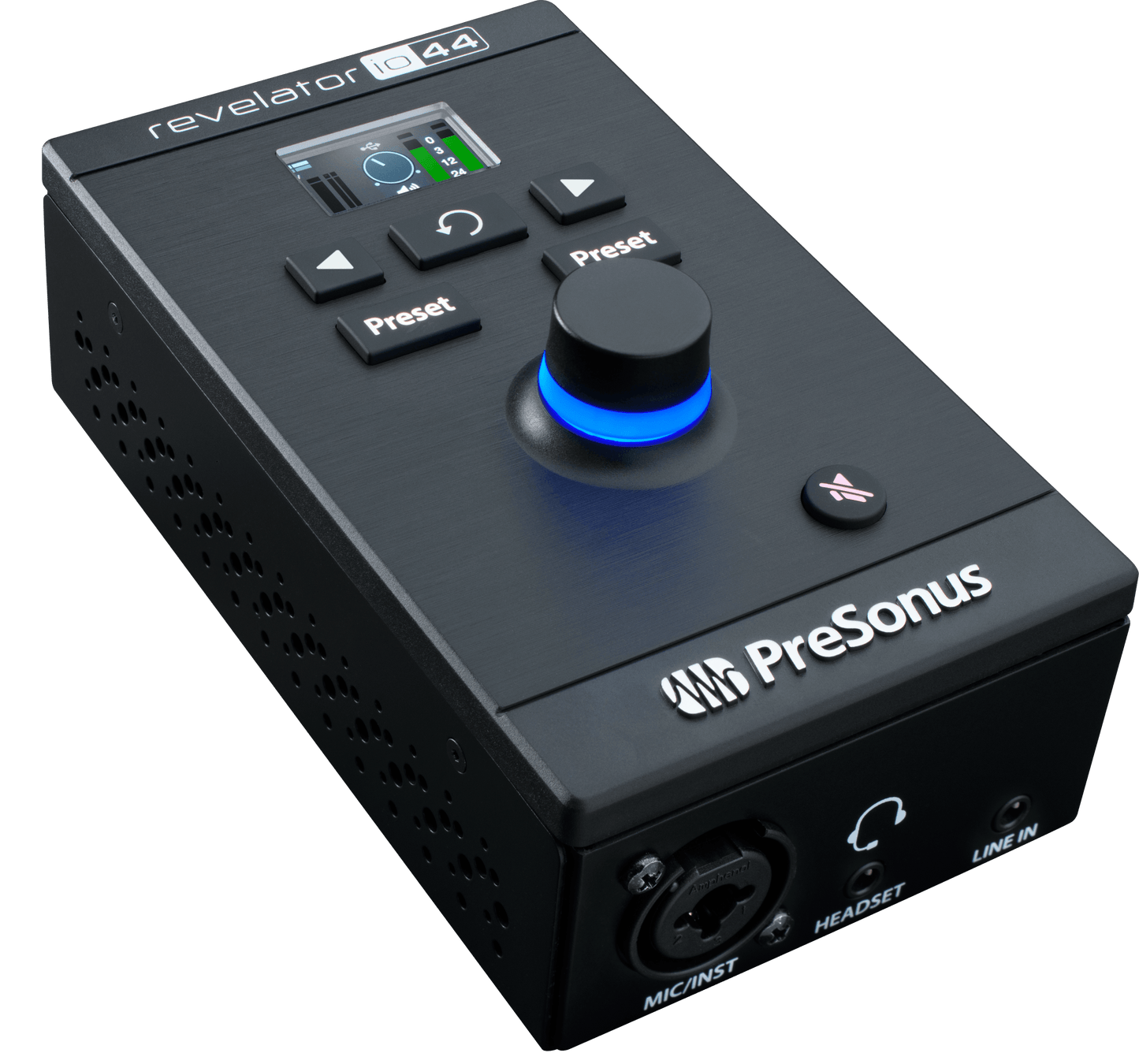

Revelator io44
Revelator io44
Couldn't load pickup availability
Overview
Create a high-end recording studio anywhere with Revelator io44. Whether you want to connect a professional XLR microphone, a guitar, a DJ mixer, or your gaming headset, Revelator io44 has all the inputs and outputs you need to record… even a built-in mixer that lets you blend audio from multiple applications. Processing is available on every analog input, so you'll sound smooth and polished in your performances and recordings.
Guitarists, singers, DJs, and everyone else: you'll sound great, regardless of if you're tracking a record or performing live online.
25 years of studio-grade design experience is inside Revelator io44. Your XLR microphones will sound their best thanks to the PreSonus XMAX-L mic preamp with plenty of gain for your professional microphone to capture your voice smoothly, naturally, and distortion-free - and the onboard processing will make your voice stand out. Whether you're recording a vocal or chatting with your followers during a livestream, you'll be heard loud and clear.
Revelator io44 features an easy-to-use mixer that lets you blend audio from up to three different applications at once. Add backing tracks, Skype calls, and even gameplay quickly and easily without taxing your computer. An automatic output limiter prevents your stream from distorting. Whether you're on macOS or Windows, you can create custom mixes of your inputs and your applications and monitor it all at near-zero latency so you can stream and record simultaneously!
Overview
Features
- Ultra-compact, mobile bus-powered USB-C® compatible audio interface for recording, streaming, podcasting and more
- 96 kHz / 24-bit operation for pristine audio recording

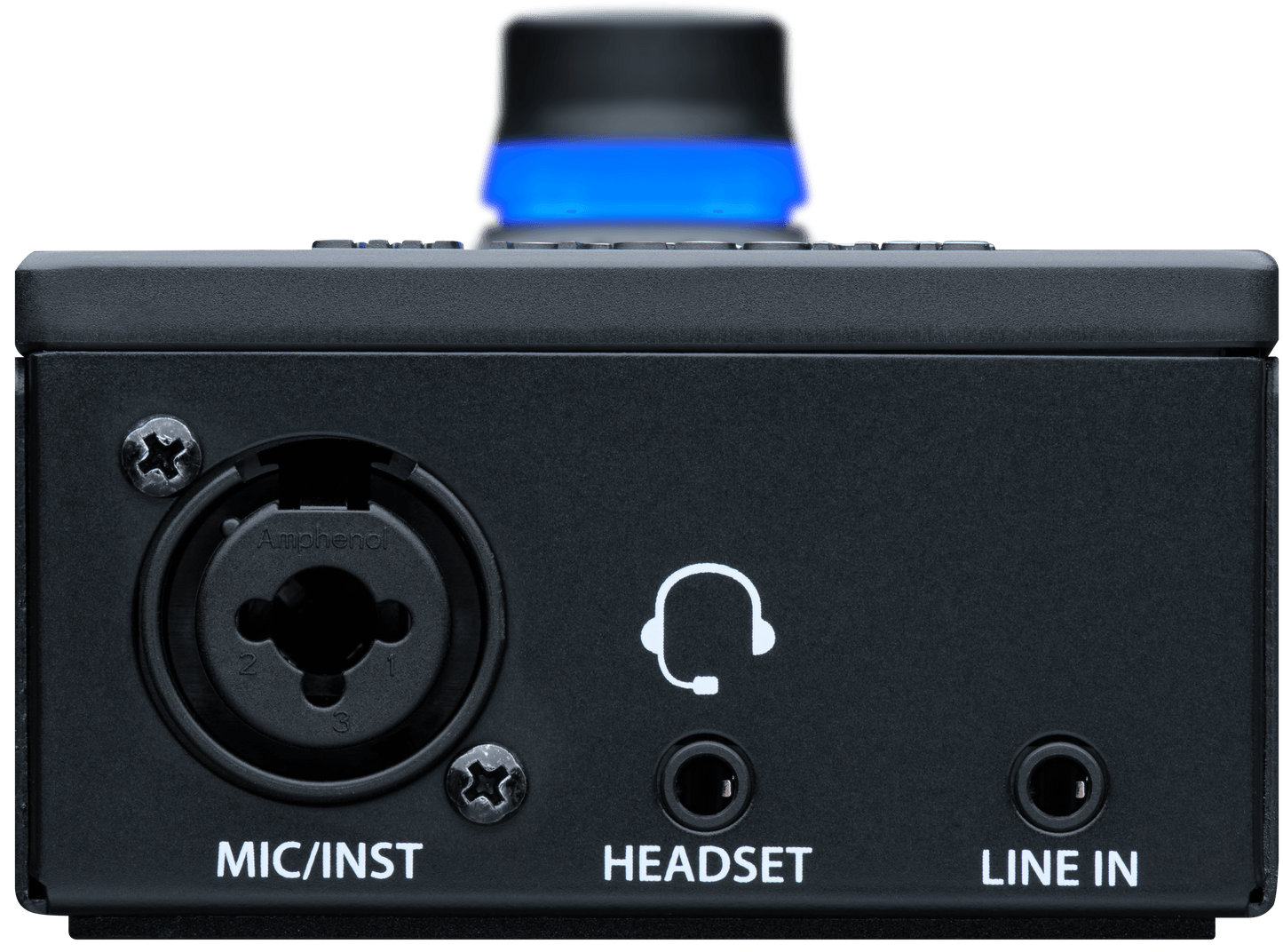

- 1 digitally controlled, high-headroom, low noise XMAX-L mic preamp for professional results
- 1 Instrument input (via combo) for guitars and basses
- 1 TRS ⅛" Stereo Line input for DJ mixers and more
- Stand-alone functionality lets you take your sound with you

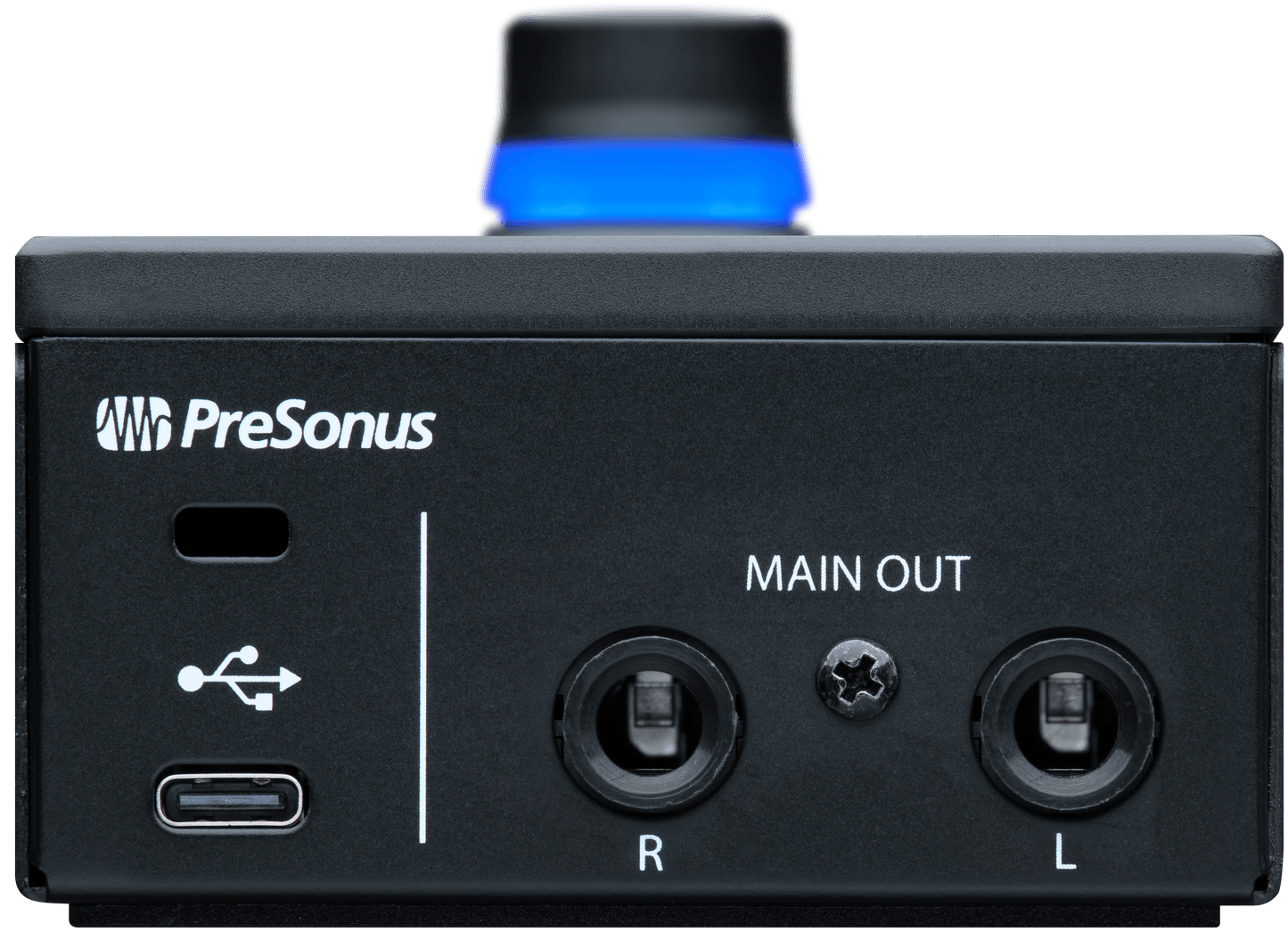

- Balanced Main Left / Right with independent level control and mute
- 1 TRRS 1/8" stereo Headset connection (mic in, stereo out)
- Integrated mixer lets you blend audio from up to three applications at once
- Powerful onboard StudioLive processing lets you polish your sound (or completely transform it) with reverb, compression, EQ, and fantastic Voice FX - all without taxing your CPU
- Professionally crafted Presets make you sound like a pro with a single click. You can also create your own custom presets to share, save, or produce on the go
- Fender Studio Pro - 6 Month Trial
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v4.3.3.100963 (Mac)
- Universal Control v4.3.3.100963 (Windows)
- Universal Control v3.6.0.66460 (Mac)
- Universal Control v3.6.0.66460 (Windows)
- Universal Control v3.6.2.85277 (Windows)
- Universal Control v3.6.2.85277 (Mac)
- Universal Control v3.6.4.87069 (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro - 6 Month Trial
Your hardware registration includes a Fender Studio Pro 6 Month Trial — a great way to start recording and a powerful entryway into the Fender Studio universe. Users can upgrade to Fender Studio Pro when they're ready to take their game to the next level. Compatible with virtually all macOS, and Windows.
Analog classics under the hood.
Revelator io44 provides State Space-modeled analog processing onboard with the same Fat Channel gate, compressor, and EQ our StudioLive Series III mixers offer. Like what you hear? All processing can be printed to your recording, or just used for your monitor mix, you decide.
Ready to go live when you are.
Revelator io44’s presets are stored on the mic, so you can take your sound with you. Connect directly to your iPad Pro, or grab your Camera Connection Kit and connect your Revelator to your Lightning- or USB-C-equipped iPhone or iPad. Only Revelator brings studio-quality sound to Facebook Live, IGTV, or anywhere else you stream from your mobile device.
Specs
Product Name
Revelator io44, Black
Series
Revelator™
Color
Black
Frequency Response
20 Hz to 20 kHz
Input Impedance
1.4 kΩ
EIN
-128 dBu
THD+N
0.005% (1 kHz, -1 dBFS, Minimum Gain)
Gain Range
60 dB
Maximum Input Level
+10 dBu (±0.5 dBu, Minimum Gain)
Phantom Power
+48 VDC, 10 mA
Frequency Response
20 Hz to 20 kHz
Gain Range
40 dB
Maximum Input Level
+10 dBu
Connection Type
1/8" TRRS Female (Stereo Headset Compatible)
Frequency Response
20 Hz to 20 kHz
Impedance Working Range
32Ω to 300Ω
Maximum Output Level
30mW/Channel @56Ω
Voltage
USB Bus Powered
Voltage Requirements
100-240 VAC, 50-60 Hz
Connectivity
USB-C® Compatible USB 2.0 Connection (Bus-Powered)
Bit Depth
24-bit
Dynamic Range
96 dB
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Height
2.3" (5.8 cm)
Depth
3" (7.5 cm)
Width
5.35” (13.6 cm)
Weight
0.78 lbs (0.35 kg)
